BRake disc heat cracks, how much is too much?

Post new topic Reply to topic trackscotland.co.uk Forum Index | Technical    Page 1 of 1

Wed Aug 05, 2015 8:34 am PostPost subject: BRake disc heat cracks, how much is too much?
Merlin
established user


Joined: 12 Oct 2010
Posts: 1173
Location: East Lothian

Reply with quote

At the last SLS I noticed that my discs area showing a fair amount of heat cracks on my KSport discs. I have had heat cracks on previous brake setups that resulted in brake judder, so I replaced them when that happened.

When it comes to heat cracks at what point should the disc's be changed?


_________________
Maroon 1993 Honda Prelude - Crystal Blue 2000 Honda Prelude
Back to top
View user's profile Send private message

Wed Aug 05, 2015 8:38 am PostPost subject:
AK
Site Admin


Joined: 27 Nov 2006
Posts: 18916
Location: Aberdeen

Reply with quote

When they propagate out to the edges and cause splits.

I've seen this on a fair few sets of discs now, normally after use on longer circuits (Silverstone, Snetterton). Only ever had it happen to 1 KSport disc though.

Both of ours have lots of small 'cracks' about 5mm long, but none are on the outer edge.

Any pics?
_________________
Impreza Race Car - SLS/SMRC
Mini Race Car - SMRC
911 - 1981 Air Cooled 3.0
500 - 1969 Fiat 500 L
Toureg 262 RLine
Track Scotland
Back to top
View user's profile Send private message

Wed Aug 05, 2015 8:52 am PostPost subject:
Merlin
established user


Joined: 12 Oct 2010
Posts: 1173
Location: East Lothian

Reply with quote

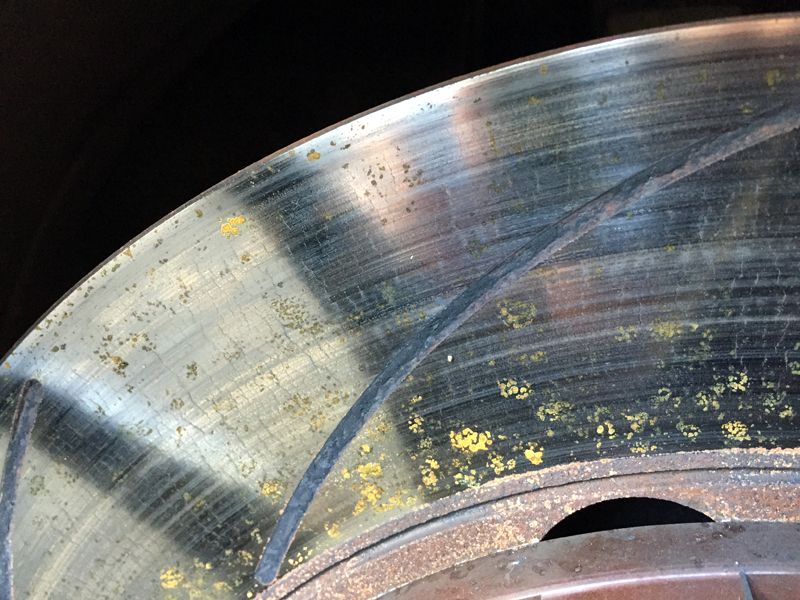

Sorry I edited my post probably as you were typing. Pic added.

I had a quick look around the paddock and most other peoples discs looked broadly similar.
_________________
Maroon 1993 Honda Prelude - Crystal Blue 2000 Honda Prelude
Back to top
View user's profile Send private message

Wed Aug 05, 2015 9:02 am PostPost subject:
HummuH
SMRC S&S Rep


Joined: 05 Jan 2012
Posts: 2280
Location: Sniffing petrol

Reply with quote

In general, surface cracks = normal, just keep an eye on them, particularly on the inside of the disc as it's harder to inspect.

Anything that get close to or penetrates the edge or develops a noticeable lip, as AK says, bin.
_________________
MD Racing
SMRC Sports & Saloons Facebook Page
Back to top
View user's profile Send private message

Wed Aug 05, 2015 9:29 am PostPost subject:
Merlin
established user


Joined: 12 Oct 2010
Posts: 1173
Location: East Lothian

Reply with quote

Thanks. I'll keep an eye on them. I need to take my brakes apart anyway as I had come crap in there after my visit to the gravel.
_________________
Maroon 1993 Honda Prelude - Crystal Blue 2000 Honda Prelude
Back to top
View user's profile Send private message
