Mk3 Seat Ibiza Cupra 20vt - Updated 28/4/16

Post new topic Reply to topic trackscotland.co.uk Forum Index | Projects    Page 1 of 1

Wed Nov 18, 2015 3:23 pm PostPost subject: Mk3 Seat Ibiza Cupra 20vt - Updated 28/4/16
Watsonę
newbie


Joined: 27 Apr 2015
Posts: 15
Location: Grangemouth

Reply with quote

About time I put up a spec list of my Ibiza Cupra Very Happy ...

I've had the car for nearly 4 years now. It was pretty much as good as standard when I first got it and I slowly modified it along the years until what it looks like today.

Current Spec...

Engine

- 230bhp - 273ft.lbs
- Ko3s Turbo
- Revo Stage2 Map
- 2.0TFSI Coilpacks
- Ported Manifold
- 3" Decat Downpipe
- 2.5" Blueflame System
- BMC Race Filter
- Forge TIP
- Forge 007p Dumpvalve
- Toyosport 600mm X 300mm X 76mm FMIC
- 2.5" Pipework
- SFS/Ash Silicone Hoses
- Forge Map Sensor Tube
- N249 Bypass
- N112 Bypassed
- SAI Removed With Forge Blanking Plate
- Carbon Canister N80 Removed
- AC Removed
- Pholenic Insulator Gasket

Transmission

- G60 Flywheel
- VR6 Clutch
- TT Short Shifter Selector
- eBay Short Shift
- Richbrook Gearknob

Chassis

- Neuspeed 28mm Rear ARB
- Neuspeed 25mm Front ARB
- KW Variant 1 Coilovers
- PowerFlex Full Front Kit Bushes
- PowerFlex Black Series Rear Beam Bushes
- Seat Sport Strut Brace
- OMP Front Lower Brace
- OMP Rear Strut Brace
- Vibratechnic Engine/Gearbox Mounts

Brakes

- 312mm Front Calipers & Carriers
- Drilled & Grooved Discs F+R
- Ferodo Racing DS2500 Pads
- Dot4 Racing Fluid

Wheels/Tyres

- Rota Slipstream's 16x8 ET34 (Raod)
- Cupra R Super T's 16x7 ET35 (Track)
- Team Dynamics Prorace 1.2's 16x7 ET38 (Track)
- Yokohama Advan AD08R 205/45
- Race Stud Conversion

Exterior

- Drilled Bumper/Canards
- Custom Wings
- 5000K HID's
- LCR Front Splitter
- Colour Coded Bumpstrips

Interior

- 2x Corbeau Clubsport Bucket Seat
- 2x OMP Seat Rail
- 2x OMP 4 Point Harness
- OMP Deep Dish Steering Wheel
- Ex Rockingham 'CustomCages' Full Cage
- Fire Extinguisher
- Momo Boss Kit
- Nomad Single Gauge Pillar Pod
- AutoGauge Boost Gauge
- Cupra R Volt Gauge
- Cupra R Oil Temp Gauge
- Dension Ipod Interface
- Audi TT Pedals
- Stripped Out Rear



























It's off the road the now until around March, so I can start getting a few upgrades done here and there ready for next years track action. So will hopefully be able to keep this thread updated Smile


Last edited by Watsonę on Thu Apr 28, 2016 10:14 pm; edited 5 times in total
Back to top
View user's profile Send private message

Wed Nov 18, 2015 9:06 pm PostPost subject:
HummuH
SMRC S&S Rep


Joined: 05 Jan 2012
Posts: 2280
Location: Sniffing petrol

Reply with quote

Looking good!

Always meant to ask, did you custom job the front wings yourself?
_________________
MD Racing
SMRC Sports & Saloons Facebook Page
Back to top
View user's profile Send private message

Wed Nov 18, 2015 9:22 pm PostPost subject:
Watsonę
newbie


Joined: 27 Apr 2015
Posts: 15
Location: Grangemouth

Reply with quote

Thanks Mark Smile

Nah, the wings had been done by a guy down south that used them on his tracked Ibiza. He was breaking the car so bought them off him. So cant take the credit for them im afraid lol
Back to top
View user's profile Send private message

Tue Dec 01, 2015 11:13 am PostPost subject:
bazf
user


Joined: 17 Aug 2008
Posts: 212
Location: Aberdeenshire

Reply with quote

Very nice Cool
_________________
DMC Performance
AKS Tuning
Back to top
View user's profile Send private message

Sat Jan 02, 2016 8:43 pm PostPost subject:
Watsonę
newbie


Joined: 27 Apr 2015
Posts: 15
Location: Grangemouth

Reply with quote

bazf wrote:
Very nice Cool

Cheers Baz Wink

Small progress update:

Decided to get cracking over the festive holidays and bare the cold weather to lose more unnecessary weight from the car...

Starting with ripping out the headlining and remaining plastic trims



Then it was too take out the dash, for all the stuff behind it.

Never will I again try and take it out the dash whilst the cage is still in lol... What a nightmare I had trying to squeeze it round that Shocked









Passenger airbag, heater matrix and more sound deadening removed...





All sound deadening gone...







Opened up the heater matrix to take out the rest of my AC...





Trimmed some areas off the dash...





Blocked off the centre flow for the heater vents



Still got some more things to do to the dash but having to wait on things arriving.

The weight lost from all that is...

- Sound deadening behind dash - 3.8kg
- Airbag/Bracket/Module - 4.7kg
- AC in heater matrix - 2.1kg
- Headlining/Trims - 4.2kg

Stripped my spare gear selector box for paint, before I top mount it inside the car...





Finished Smile



Then washed the two cars for the last time in 2015 Razz



Back to top
View user's profile Send private message

Thu Apr 07, 2016 9:15 pm PostPost subject:
Watsonę
newbie


Joined: 27 Apr 2015
Posts: 15
Location: Grangemouth

Reply with quote

Will give a quick run down of the things that went on from my last update too now...

Top mounted the shifter into the car..



Put everything back together inside and cut up/made a carbon fibre cover for the glovebox hole...





Took the doorcards off and cleaned up the inside of the doors, removed the sound deadening, unnecessary wires, speakers handles etc.

I'll get some carbon sheeting and cover it, but this shall do for the time being...

[/URL]





New Forge coolant hoses fitted along with an aluminum rad and lightweight fans...









Fitted a Forge baffled sump and put the car back together ready for it's MOT...









It passed Very Happy



Then I checked all fluids, re-coat of underseal in the arches and just general tidying up...



All set and ready for the track night on Saturday the 9th Cool
Back to top
View user's profile Send private message

Fri Apr 08, 2016 6:22 am PostPost subject:
Ibiza125
established user


Joined: 14 Jul 2009
Posts: 569
Location: Ellon, Sunny Scotland

Reply with quote

She's looking good man! Making me miss my old Mk3 Cupra!! Sad
_________________
200SX S14

Megane 225 Cup
Back to top
View user's profile Send private message Send e-mail Visit poster's website MSN Messenger

Thu Apr 28, 2016 10:12 pm PostPost subject:
Watsonę
newbie


Joined: 27 Apr 2015
Posts: 15
Location: Grangemouth

Reply with quote

Ibiza125 wrote:
She's looking good man! Making me miss my old Mk3 Cupra!! Sad

Thanks mate Smile

Fitted some brake duct backing plates over the weekend...





And got the multi USB sockets hooked up for the GoPro...

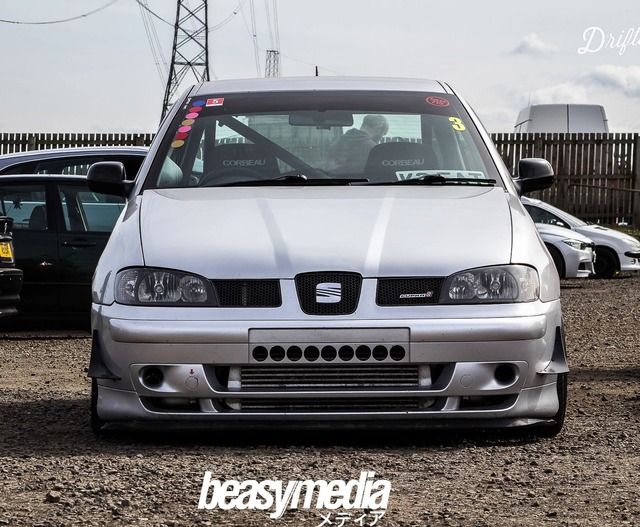

And a cool snap of the car when I was over at Driftland for the Ford day...
