Cheap and easy to use camera setup

Post new topic Reply to topic trackscotland.co.uk Forum Index | Technical Goto page Previous  1, 2, 3, 4, 5, 6, 7, 8, 9, 10  Next   Page 6 of 10

Sun Jan 03, 2016 9:04 pm PostPost subject:
Daveb
established user


Joined: 25 Jan 2008
Posts: 1257
Location: Fife

Reply with quote

Yeah that would be perfect, can I get them at the February track day save posting them?
Back to top
View user's profile Send private message

Mon Jan 04, 2016 5:08 am PostPost subject:
AK
Site Admin


Joined: 27 Nov 2006
Posts: 19366
Location: Aberdeen

Reply with quote

aye, sure can Smile
_________________
Impreza Race Car - SLS/SMRC
Mini Race Car - SMRC
911 - 1981 Air Cooled 3.0
500 - 1969 Fiat 500 L
Toureg 262 RLine
Track Scotland
Back to top
View user's profile Send private message

Mon Jan 04, 2016 11:34 am PostPost subject:
HummuH
SMRC S&S Rep


Joined: 05 Jan 2012
Posts: 2352
Location: Sniffing petrol

Reply with quote

I've got 3 of these now, seems like a really good package for the money. Really handy having the LCD screen on the back too, will make set-up a lot easier.

Usual Chinese quality instructions, I take it "Car Mode" is the mode we want for USB switching?

Only other point to make is that the cases will definitely need modified for MSA event use. There is no way of mounting the camera without the case and if you switch to the non-waterproof back, you can get a cable tie through the case for 2nd'ry restraint. Dremel/Drill will sort the hole required for USB connection.

Just waiting for the 12v USB connectors to arrive then will get installed.

Thanks for the heads up Alistair.
_________________
MD Racing
SMRC Sports & Saloons Facebook Page
Back to top
View user's profile Send private message

Mon Jan 04, 2016 12:46 pm PostPost subject:
Merlin
established user


Joined: 12 Oct 2010
Posts: 1174
Location: East Lothian

Reply with quote

I'm glad to see that it is working out for people now that we are past my muck up with the crappy cheapo camera's. I have two of the crappy ones (as well as my SJ4000) and they are seriously crappy.

Yes car mode is the option to have the camera turn on and off with the power attached. Personally I turn off "cyclic recording" as that allows the camera to record one single long vid, rather than segmetalising the vid into 1/3/5/10 min sections.

HummuH wrote:
I've got 3 of these now, seems like a really good package for the money. Really handy having the LCD screen on the back too, will make set-up a lot easier.

Usual Chinese quality instructions, I take it "Car Mode" is the mode we want for USB switching?

Only other point to make is that the cases will definitely need modified for MSA event use. There is no way of mounting the camera without the case


You should have a holder for the camera that has threaded holes for mounting the camera. Like this:



Internally this will allow you to mount it like this (which I have had no issue with SLS scrutineering):


For external mounting yes you will have to dremmel the side of the waterproof casing. I have done this already and it is fairly simple to do. There is enough space on the case:


I used this clip to externally mount the camera's waterproof case on my front splitter. I used a small bolt to attach the clip to the splitter.

_________________
Maroon 1993 Honda Prelude - Crystal Blue 2000 Honda Prelude
Back to top
View user's profile Send private message

Mon Jan 04, 2016 1:22 pm PostPost subject:
HummuH
SMRC S&S Rep


Joined: 05 Jan 2012
Posts: 2352
Location: Sniffing petrol

Reply with quote

Thanks mate. I'm quite surprised that passed scrutineering tbh, did you have a 2nd'ry restraint (cable tie) on it? There's not much keeping the camera in place in an impact.

Think I'll just keep the cases on the cameras given they'll never leave the car.
_________________
MD Racing
SMRC Sports & Saloons Facebook Page
Back to top
View user's profile Send private message

Mon Jan 04, 2016 1:27 pm PostPost subject:
Merlin
established user


Joined: 12 Oct 2010
Posts: 1174
Location: East Lothian

Reply with quote

I think it passes scrutineering as the camera is clamped into the holder, I can't see the camera ever coming loose from it, and the mount is clamped to my cage.

I did have to use secondary restraints for my old sucker based camera mount and I use a cable tie for my PerformanceBox.

The only problem with using the waterproof case is that the sound quality is reduced. However, I am sure the kit comes with a replacement rear panel for the waterproof case that has a hole for the sound. Obviously with this other panel in place the case is no longer waterproof.
_________________
Maroon 1993 Honda Prelude - Crystal Blue 2000 Honda Prelude
Back to top
View user's profile Send private message

Mon Jan 04, 2016 3:07 pm PostPost subject:
scottish scrutineer
established user


Joined: 27 Mar 2013
Posts: 530

Reply with quote

HummuH wrote:
Thanks mate. I'm quite surprised that passed scrutineering tbh, did you have a 2nd'ry restraint (cable tie) on it? There's not much keeping the camera in place in an impact.

Think I'll just keep the cases on the cameras given they'll never leave the car.


I'll be having a closer look next time Embarassed Laughing
_________________
Renny
MSA Scrutineer
Back to top
View user's profile Send private message

Mon Jan 04, 2016 3:41 pm PostPost subject:
HummuH
SMRC S&S Rep


Joined: 05 Jan 2012
Posts: 2352
Location: Sniffing petrol

Reply with quote

Woops, sorry lads Very Happy
_________________
MD Racing
SMRC Sports & Saloons Facebook Page
Back to top
View user's profile Send private message

Mon Jan 04, 2016 3:56 pm PostPost subject:
Merlin
established user


Joined: 12 Oct 2010
Posts: 1174
Location: East Lothian

Reply with quote

Laughing it will be easy enough to comply if it is needed.
_________________
Maroon 1993 Honda Prelude - Crystal Blue 2000 Honda Prelude
Back to top
View user's profile Send private message

Wed Jan 06, 2016 9:54 am PostPost subject:
Daveb
established user


Joined: 25 Jan 2008
Posts: 1257
Location: Fife

Reply with quote

Its hard enough to get the camera back out of the little holder - no way it would come out in a crash.
Back to top
View user's profile Send private message

Wed Jan 06, 2016 10:17 am PostPost subject:
James B
established user


Joined: 24 Apr 2009
Posts: 1374
Location: Aberdeen

Reply with quote

I was concerned about the secondary restraint issue so have two methods of sorting;

1) I bought these wee tethers. http://www.demon-tweeks.co.uk/motorcycle/camera-mounts/gopro-camera-tethers Expensive but useful.

2) I bought a load of these Velcro cable tidies which were much more versatile http://www.amazon.co.uk/Approx-100pcs-Velcro-Wire-Cable-Straps---Black/dp/B00H93B7YO/ref=sr_1_3?ie=UTF8&qid=1452075389&sr=8-3&keywords=velcro+cable+ties
Cheap too!
_________________
Alfa Romeo GT Junior
Back to top
View user's profile Send private message Visit poster's website

Wed Jan 06, 2016 11:24 am PostPost subject:
Merlin
established user


Joined: 12 Oct 2010
Posts: 1174
Location: East Lothian

Reply with quote

Daveb wrote:
Its hard enough to get the camera back out of the little holder - no way it would come out in a crash.


This is my opinion as well. It is difficult enough to get it out by hand. There should be a wire cable in the Sj4000 Kit that can be used as a secondary restraint.

If scrutineering deems the holder to be safe but still needs a a secondary restraint for the way it attaches to the car I think that this may be a valid solution:

Wire:


Wire over threaded post:


Sandwiched between camera holder and "clamp":


The other end available for a cable tie to your cage etc...:


Or bolt the wire to the top threaded hole on the holder (bolt for illustration):

_________________
Maroon 1993 Honda Prelude - Crystal Blue 2000 Honda Prelude
Back to top
View user's profile Send private message

Wed Jan 06, 2016 1:03 pm PostPost subject:
scottish scrutineer
established user


Joined: 27 Mar 2013
Posts: 530

Reply with quote

I'd probably be happy with that Smile

I've seen failures at the hinge area on Go-Pro type casings, possibly due to vibration, as well as impact situations which is why the secondary restraint needs to be at the camera body/housing. The other failure is with the attachment to the bodywork failing, especially with suction mounts which have damaged cups, or are on panels which flex breaking the seal.
_________________
Renny
MSA Scrutineer
Back to top
View user's profile Send private message

Tue Jan 12, 2016 7:55 am PostPost subject:
AK
Site Admin


Joined: 27 Nov 2006
Posts: 19366
Location: Aberdeen

Reply with quote

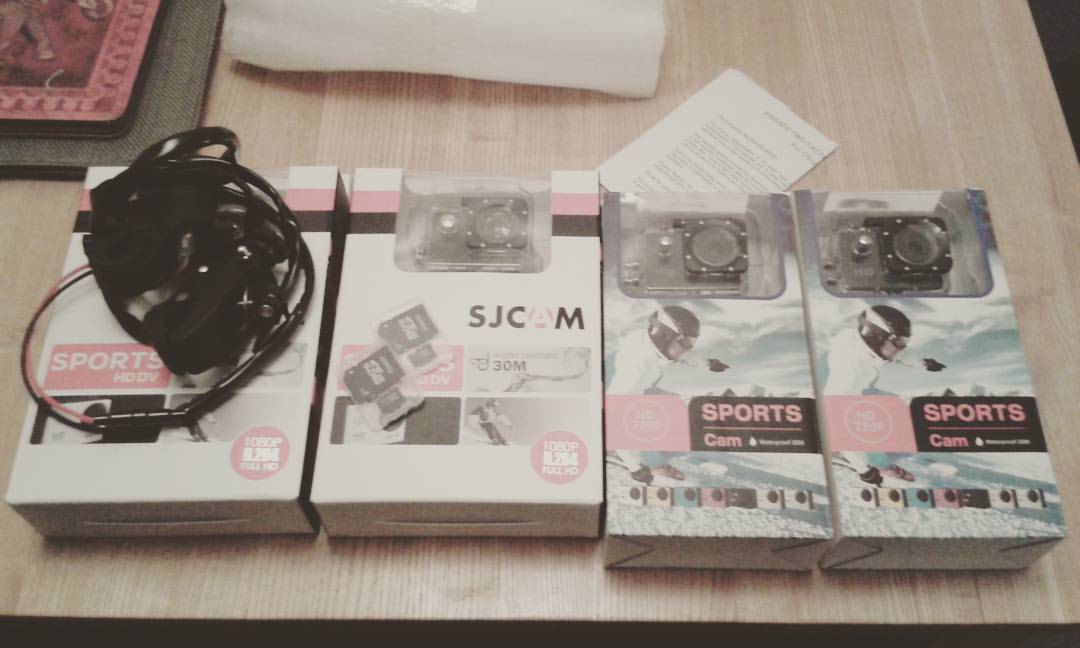

my real SJ (fake GoPro), next to the fake SJ fake GoPro Laughing


_________________
Impreza Race Car - SLS/SMRC
Mini Race Car - SMRC
911 - 1981 Air Cooled 3.0
500 - 1969 Fiat 500 L
Toureg 262 RLine
Track Scotland
Back to top
View user's profile Send private message

Tue Jan 12, 2016 6:10 pm PostPost subject:
Avo
user


Joined: 27 Mar 2014
Posts: 136
Location: Aberdeen

Reply with quote

Ive got 2 of them fake SJ's lol, i got them for 15 each with 3 extra batterys, aslong as they take video's im not worried lol

I tried them out around the house and they seem fine(ish) not sure how well they will do with speed though lol
Back to top
