Tue Jul 12, 2016 1:50 pm PostPost subject: House Project
AK
Site Admin


Joined: 27 Nov 2006
Posts: 19611
Location: Aberdeen

Reply with quote

Not car.... but still a lot of DIY and stuff Very Happy

House built 1898, 3 story granite terraced.

As we moved into it... back in 2012






Back lounge/sitting room. We'll change to Dining Room





Kitchen (will be getting demolished and opened up with the old dining room)




Dining Room (see above)




Bedroom 1




Bedroom 2




Bedroom 3 - to be split into en-suite and walk in wardrobe



Bedroom 4 - will be split back into 2 bedrooms & shower room rather than one large attic room and a couple of large storage cupboards in hall space.





Shower room




Bathroom - will be converted back to bedroom




Vestibule, terrazo floor tiles, features on the freeze etc




Stairs, hall etc (lots of it.... 3 floors... 4 sets of stairs)






_________________
Impreza Race Car - SLS/SMRC
Mini Race Car - SMRC
911 - 1981 Air Cooled 3.0
500 - 1969 Fiat 500 L
Toureg 262 RLine
Track Scotland
Back to top
View user's profile Send private message

Tue Jul 12, 2016 1:51 pm PostPost subject:
AK
Site Admin


Joined: 27 Nov 2006
Posts: 19611
Location: Aberdeen

Reply with quote

some more pics from a better camera









[/img]
_________________
Impreza Race Car - SLS/SMRC
Mini Race Car - SMRC
911 - 1981 Air Cooled 3.0
500 - 1969 Fiat 500 L
Toureg 262 RLine
Track Scotland
Back to top
View user's profile Send private message

Tue Jul 12, 2016 1:53 pm PostPost subject:
AK
Site Admin


Joined: 27 Nov 2006
Posts: 19611
Location: Aberdeen

Reply with quote

Spare bedroom. Last wifey must have loved her Yellows :O

bedroom 2 basically done... just need to paint inside of the cupboard.








_________________
Impreza Race Car - SLS/SMRC
Mini Race Car - SMRC
911 - 1981 Air Cooled 3.0
500 - 1969 Fiat 500 L
Toureg 262 RLine
Track Scotland
Back to top
View user's profile Send private message

Tue Jul 12, 2016 2:00 pm PostPost subject:
AK
Site Admin


Joined: 27 Nov 2006
Posts: 19611
Location: Aberdeen

Reply with quote

front lounge... lovely hardboard on top of the floorboards, and some previous repairs from rot/damp. None of this was picked up in home report, but its been repaired with new joists etc. I ended up sourcing period correct and correct dimension board from a Victorian school down south that was getting knocked down.

When orig sash & case windows were replaced the bastards just smashed there way through the wood panneling and replaced with shite hardboard and painted it. Another unwanted surprise. Found 1 broken panel and repaired it, and found some pitch pine at a salvage yard to make the other one. Rage!













SO much paint stripping.... :/





visited some salvage yards in edinburgh - no luck with reclaimed 5" x 1" pitch pine boards. Will just have to get them delivered from England. Checked out the possibilities of taking them from a room upstairs but its a daft all round plan... we'd need new boards to replace them so may as well do the job once!

Repaired and made replacement panels for the window. The lighter one will match in the end once wood has been lightened etc.




Lounge - Stripped and bleached the door - not cleaned properly yet but its much lighter already Smile

Nitromorsed, and cleaned with sugersoap.


bleach doing its thing (vitableach 2 pack)



after 30mins or so



Nitromorsed (not cleaned) wood vs the stripped back wood


Window pannelling coming along - to be cleaned and bleached too



Stripping all the bay window mouldings after patching the missing panels.



Patching the bay window floor with salveged boards... came out ok once levels and sanded down. Can still see the difference if you know they are different and look. i.e they werent tongue n groove






Woodwork all done... first coat with a clear satin finish, then two coats with a dark oak scumble, turps and some polyurethene varnish mix.... seems to have come out quite nice. The picture rail was simply replaced as it wasnt original - so feck stripping light modern yellow pine!
Floors - 3 coats of medium oak satin.




_________________
Impreza Race Car - SLS/SMRC
Mini Race Car - SMRC
911 - 1981 Air Cooled 3.0
500 - 1969 Fiat 500 L
Toureg 262 RLine
Track Scotland
Back to top
View user's profile Send private message

Tue Jul 12, 2016 2:45 pm PostPost subject:
AK
Site Admin


Joined: 27 Nov 2006
Posts: 19611
Location: Aberdeen

Reply with quote

Master Bedroom... more yellow Razz

To Do - make 2x doorways into small bedrrom next door. Convert into walkin wardrobe and ensuite.

Keeping facings etc period correct











Damp problems in this corner so stripped back and had a look. Gutters were clogged and pointing on the roof edging a bit shit...



Cant remember why i took the ceiling down Laughing Must have been sagging from the damp... so ripped it out and replaced, keeping and patching orig coving.





more and more woodwork







Making the blocks for door frames.... old church pews, and scored on the inner edge like the Victorians did (to keep lines straight etc)








Previous twat owners had siliconed ALL windows shit Neutral

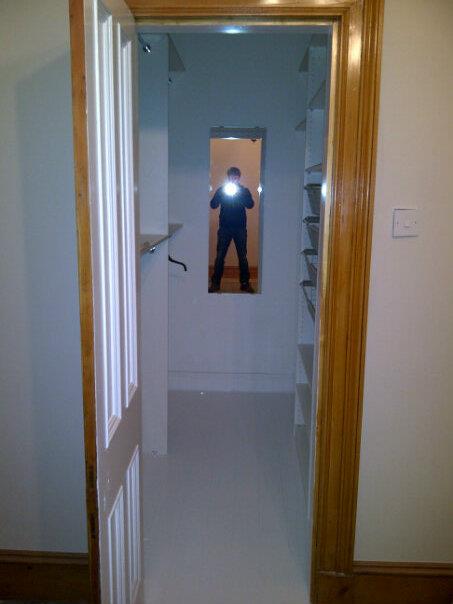

Wardrobe





_________________
Impreza Race Car - SLS/SMRC
Mini Race Car - SMRC
911 - 1981 Air Cooled 3.0
500 - 1969 Fiat 500 L
Toureg 262 RLine
Track Scotland
Back to top
View user's profile Send private message

Tue Jul 12, 2016 2:54 pm PostPost subject:
AK
Site Admin


Joined: 27 Nov 2006
Posts: 19611
Location: Aberdeen

Reply with quote

On to Ensuite...

the front half of the old bedroom that was used for the walk in wordrobe. About 1.9m x 2.5m so ok size... not massive. Due to conservation area we couldnt take 4" waste out the front of the house and I didnt want to box off parts of the hall/vestibule below. I tried running pipe down wall space but just gave up in the end and went with a saniflow and smaller pipe down to 4" mains in basement.

heating pipes needed move... floors needed patched etc etc

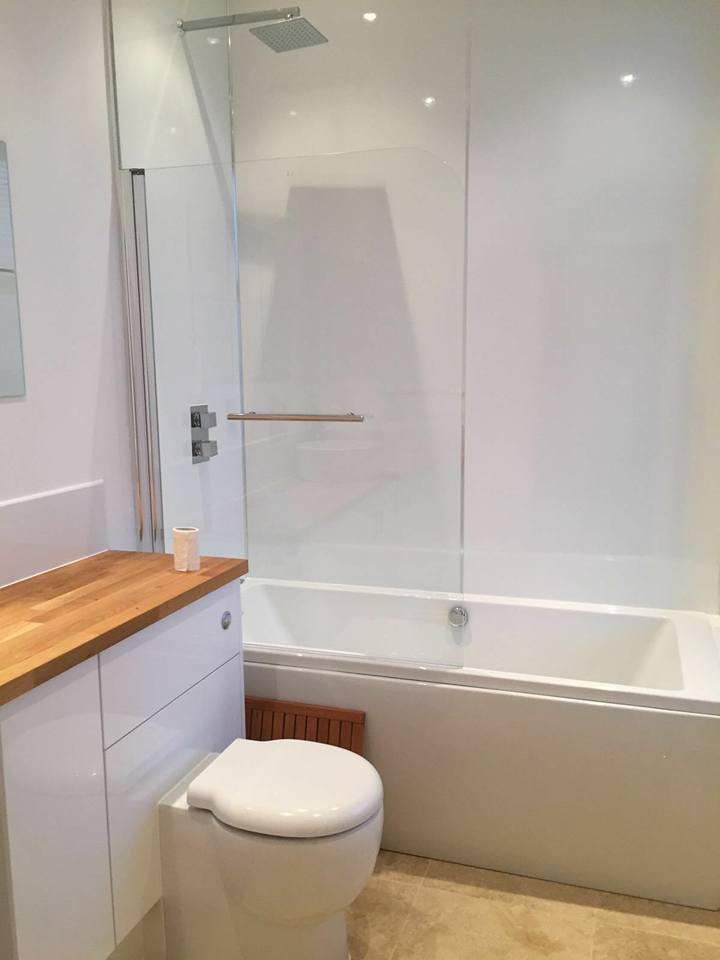

New walls boarded and taped, celing lowered with spots. Travetine tiles, simple bathroom suite.





_________________
Impreza Race Car - SLS/SMRC
Mini Race Car - SMRC
911 - 1981 Air Cooled 3.0
500 - 1969 Fiat 500 L
Toureg 262 RLine
Track Scotland
Back to top
View user's profile Send private message

Tue Jul 12, 2016 3:04 pm PostPost subject:
alistairolsen
established user


Joined: 16 Nov 2007
Posts: 709

Reply with quote

AK wrote:
front lounge...




Some job there, hats off for the commitment, I hate stripping paint and going from paint back to varnish is about the worst!

Can sympathise with previous bodges, we're going through that pain with our place just now!
Back to top
View user's profile Send private message

Tue Jul 12, 2016 3:10 pm PostPost subject:
andybell
established user


Joined: 16 May 2013
Posts: 1212

Reply with quote

i kinda enjoy it and parts of your house scarily like ours Smile painting ornate cornicing etc.. was so enjoyable for me.
_________________
http://www.youtube.com/user/andybalcairn/ to see how bad I drive!!!
Back to top
View user's profile Send private message

Tue Jul 12, 2016 3:17 pm PostPost subject:
AK
Site Admin


Joined: 27 Nov 2006
Posts: 19611
Location: Aberdeen

Reply with quote

Monster Hall!! 15 doors to strip, staircase, all skirtings and facings. Ceiling to re-do... WC to add in under stairs.



Stripping layers and layers of old paper off. Bit of a PITA at peak height of something like 7m. Scaffolding required.



Celing also needed patched round the stained glass window (light tunnel) type thing. Water ingres again - repaired the skylight.





Old box for the buzzers in the room thing went here... Really would like to put a dummy one back in Very Happy Following a trend.... it must have been removed an bodged in the late 70s





walls stripped



Opening up the room for new WC under stairs. Load of pipes for heating, alarm system and some wiring needed moved too.






Yet more wood stripping Sad
















starting to finish it off



Cast iron spindles finished in old penny broze effect paint. Feckin daft expensive stuff.

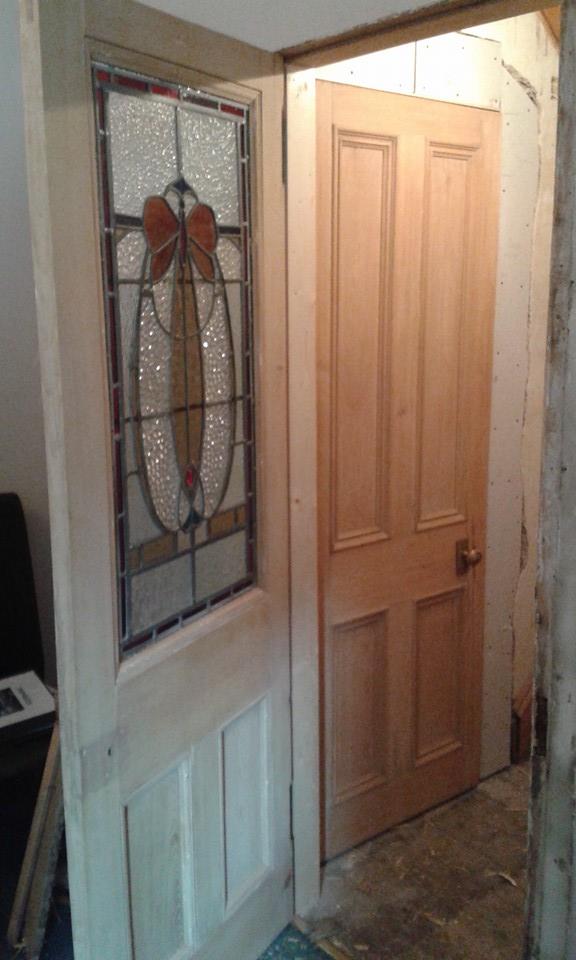

More salvage yard finds Smile Glasgow this time... for a pair old stained glass panels to go into door. 1 for kitchen to hall, and one for vestibule. This is the one for kitchen to hall.



with the door it was to go into


laid out and repaired and extended



panel finished



in door



_________________
Impreza Race Car - SLS/SMRC
Mini Race Car - SMRC
911 - 1981 Air Cooled 3.0
500 - 1969 Fiat 500 L
Toureg 262 RLine
Track Scotland
Back to top
View user's profile Send private message

Tue Jul 12, 2016 4:08 pm PostPost subject:
AK
Site Admin


Joined: 27 Nov 2006
Posts: 19611
Location: Aberdeen

Reply with quote

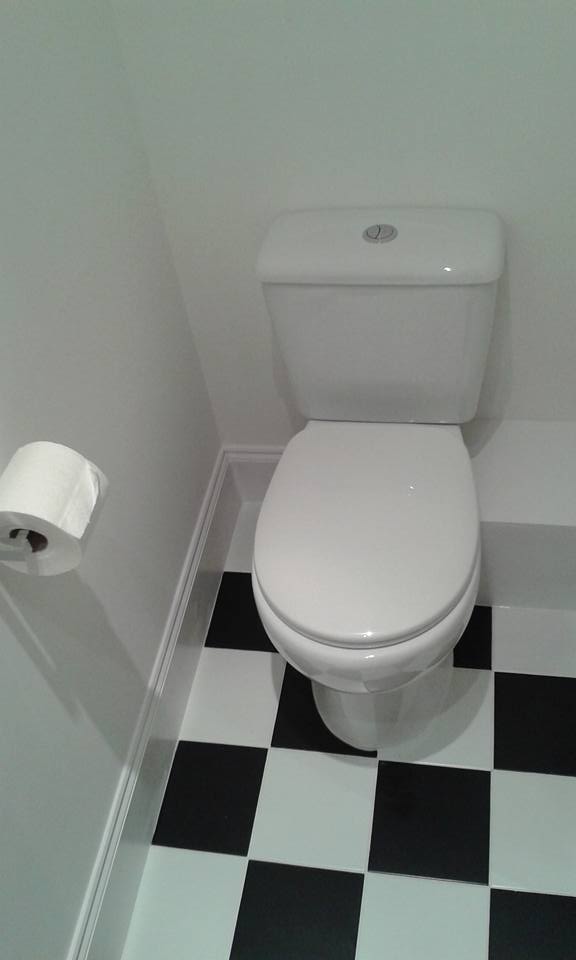

WC under stairs....












_________________
Impreza Race Car - SLS/SMRC
Mini Race Car - SMRC
911 - 1981 Air Cooled 3.0
500 - 1969 Fiat 500 L
Toureg 262 RLine
Track Scotland
Back to top
View user's profile Send private message

Tue Jul 12, 2016 4:14 pm PostPost subject:
AK
Site Admin


Joined: 27 Nov 2006
Posts: 19611
Location: Aberdeen

Reply with quote

Vestibule....

no finished pics for some reason... but woodwork all matching etc, oak panels on lower half to try and help keep it cleaner with Bruno when he's wet!

Some more horid colours evident at somepoint :S








_________________
Impreza Race Car - SLS/SMRC
Mini Race Car - SMRC
911 - 1981 Air Cooled 3.0
500 - 1969 Fiat 500 L
Toureg 262 RLine
Track Scotland
Back to top
View user's profile Send private message

Tue Jul 12, 2016 4:20 pm PostPost subject:
Fee
Site Admin


Joined: 27 Nov 2006
Posts: 3569
Location: Antartica

Reply with quote

When you look at the before and after pics...we have actually done quite a lot
_________________
2010 Time Attack AWD Club Challenge Champion
2013 Rolly Polly Champion

R32 GTR: TimeAttack - Track Scotland
Back to top
View user's profile Send private message Send e-mail

Tue Jul 12, 2016 4:24 pm PostPost subject:
AK
Site Admin


Joined: 27 Nov 2006
Posts: 19611
Location: Aberdeen

Reply with quote

Old suite getting ripped out. No longer needed 2x toilets right next door to each other. Swap it back to a bedroom.





ripping off tiles left not a lot of orig plaster!


another celing to do! This had been taken down before and a false celing inserted for the bathroom. Sack that, back to full height 3+m celing.



old fireplace


attic space... 2x water tanks for header of old hot water system. Removed and mains pressure system fitted to feed new WCs above this.




plaster plaster plaster



tidying up and finishing...






New 'period' coving from Boyles in Glasgow. Bit of a PITA to fit but after priming the mating faces with watered PVA it was a bit easier.





No finished pics again, maybe Fee has. Carpets down etc. Needs redone though Mad due to some cracks from building work on this gable end of house.
_________________
Impreza Race Car - SLS/SMRC
Mini Race Car - SMRC
911 - 1981 Air Cooled 3.0
500 - 1969 Fiat 500 L
Toureg 262 RLine
Track Scotland
Back to top
View user's profile Send private message

Tue Jul 12, 2016 4:30 pm PostPost subject:
AK
Site Admin


Joined: 27 Nov 2006
Posts: 19611
Location: Aberdeen

Reply with quote

Rear lounge.... being turned into dining room. Not done much in here, but the work has started and double doors opened out onto rear garden.



_________________
Impreza Race Car - SLS/SMRC
Mini Race Car - SMRC
911 - 1981 Air Cooled 3.0
500 - 1969 Fiat 500 L
Toureg 262 RLine
Track Scotland
Back to top
View user's profile Send private message

Tue Jul 12, 2016 4:35 pm PostPost subject:
AK
Site Admin


Joined: 27 Nov 2006
Posts: 19611
Location: Aberdeen

Reply with quote

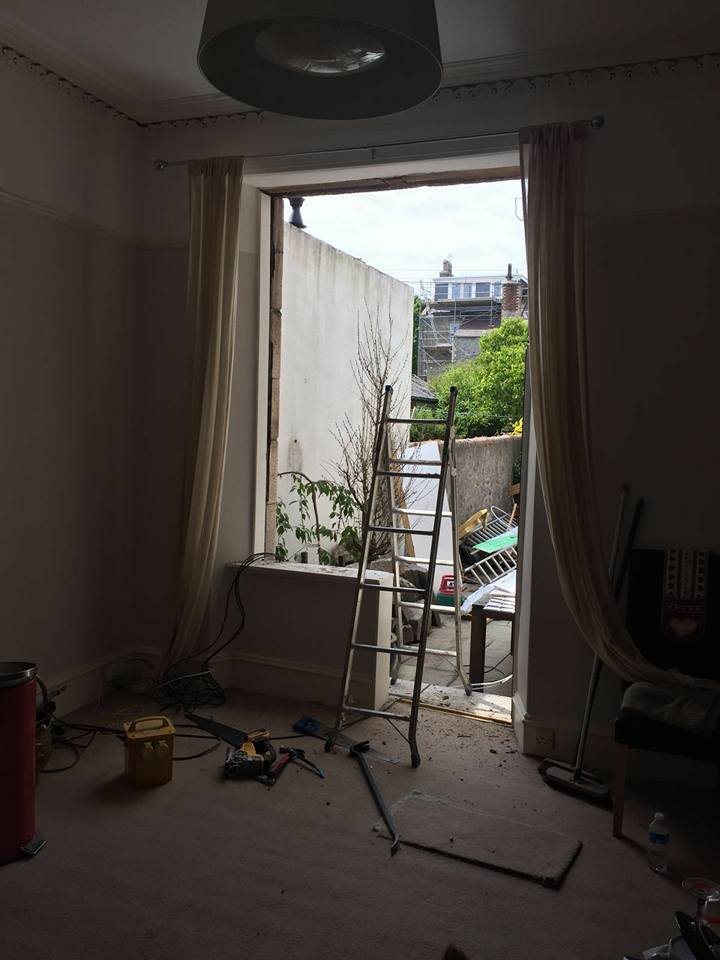

What used to be dining room and kitchen (kitchen was in an extension... thats gone in these pics... )

Steel beams added, chimney brest gable wall knocked through... bi folding doors yadda yadda.

Kitchen will be in the back bit, with living area in the outer glass bitty






_________________
Impreza Race Car - SLS/SMRC
Mini Race Car - SMRC
911 - 1981 Air Cooled 3.0
500 - 1969 Fiat 500 L
Toureg 262 RLine
Track Scotland
Back to top
View user's profile Send private message
